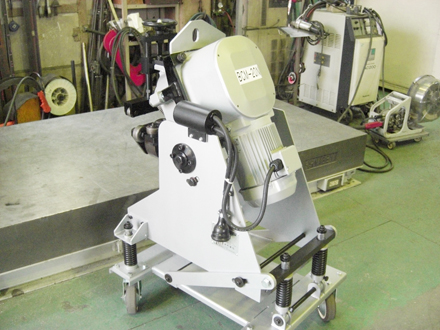

click to enlarge It's New! BCM-20N For 32mm~40mm thickness plate!
In the recent few years, customers’ inquiry for beveling thick plate as 32mm, 35mm or 40mm has been increased at plant site, shipyard, building material manufacturer or iron&steel work industry. We developed new model of BCM-20N to meet such markets’ needs.
Standard specification
Rated input voltage 3 Phase , 200/220V , 50/60Hz
Motor output 1.5KW
Max beveling speed 2.2m per minute
Most applicable plate thickness(t) 12~28mm
Max applicable thickness(t) 40mm
Beveling angle(a°)*
*Angle can be changed by optional angle bracket
30 degree
(35, 37.5 and 45 degree is available to sell separately.)
Max beveling width(w) 20mm (for SS)
Max beveling depth(d) in 30° 17mm (for SS)
Max beveling depth(d) in 45° 14mm (for SS)
Cutter diameter φ140
Machine weight(kg) 130kg
Machine dimensions W425×L630×H690
